▶ Product features:

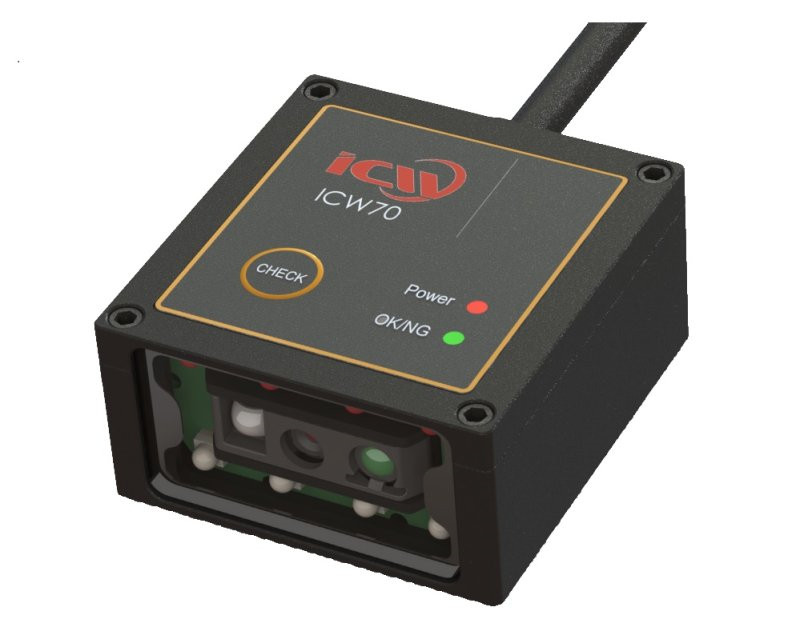

300000 pixel image fixed code reader;
● Small size;
Flexible installation and high integration;
Depending on different application scenarios, wide or narrow field versions can be selected;
Equipped with Aimer aiming point, it can quickly locate the barcode position and easily decode it;
Equipped with OK/NG signal indicator light, it can provide intuitive feedback on whether the code reading is successful;
● Support USB power supply;
Supporting multiple communication methods such as Ethernet, RS-232, USB-HID, etc
▶ Performance parameters:
| model | ICW70N | ICW70L |
| Size (mm) | forty-four × forty-four point nine × 22.4 (Width × Height × Depth | |
| weight | 145.8g | |
| voltage | 5-36VDC (supports USB power supply) | |
| Frame rate | Global Shutter CMOS 60FPS | |
| pixel | 640 pixels (H) × 480 pixels (V) | |
| Field of view angle | 22 ° | 44 ° |
| Reading distance | 30mm, 70mm, 100mm, 150mm | |
| power dissipation | Peak<2.3W, Average 2W | |
| Interface support | RS-232, USB virtual COM, USB keyboard, Ethernet | |
| External input | One photoelectric isolation input, capable of connecting to NPN, PNP, and relays | |
| External output | One photoelectric isolation output | |
| Supports one-dimensional barcode 1-D | Code 128, Code 39, Code 93, Code 11, Matrix 2 of 5, Interleaved 2 of 5, Codabar, MSI Plessey, GS1 DataBar, China Post, UPC, EAN, etc | |
| Supports 2D barcode 2D | PDF 417, MicroPDF 417, DataMatrix, Maxicode, QR code, MicroQR, Aztec, Hanxin, etc | |
| working temperature | 0 ℃ to 50 ℃ | |
| Storage temperature | -20 ℃ to 50 ℃ | |
| humidity | 0% to 90% relative humidity (non condensing) | |
| Recognition accuracy | Min. 3mil | |
| Safety level | Light safety: EAN62471:2008 | |
| EMC electromagnetic interference | EMC Electromagnetic compatibility: EN55032 | |
| Protection level | IP54 | |
| ESD electrostatic protection level | EN55024, contact discharge: 8kV, coupling discharge: 20kV | |
| RF anti-interference | IEC61000-4-3, 10V/m | |
| Artificial light immunity | 100000LUX | |
| Seismic resistance | Capable of withstanding multiple impacts of falling from a height of 1.2 meters onto the cement floor (allowable deviation of 5 °) | |

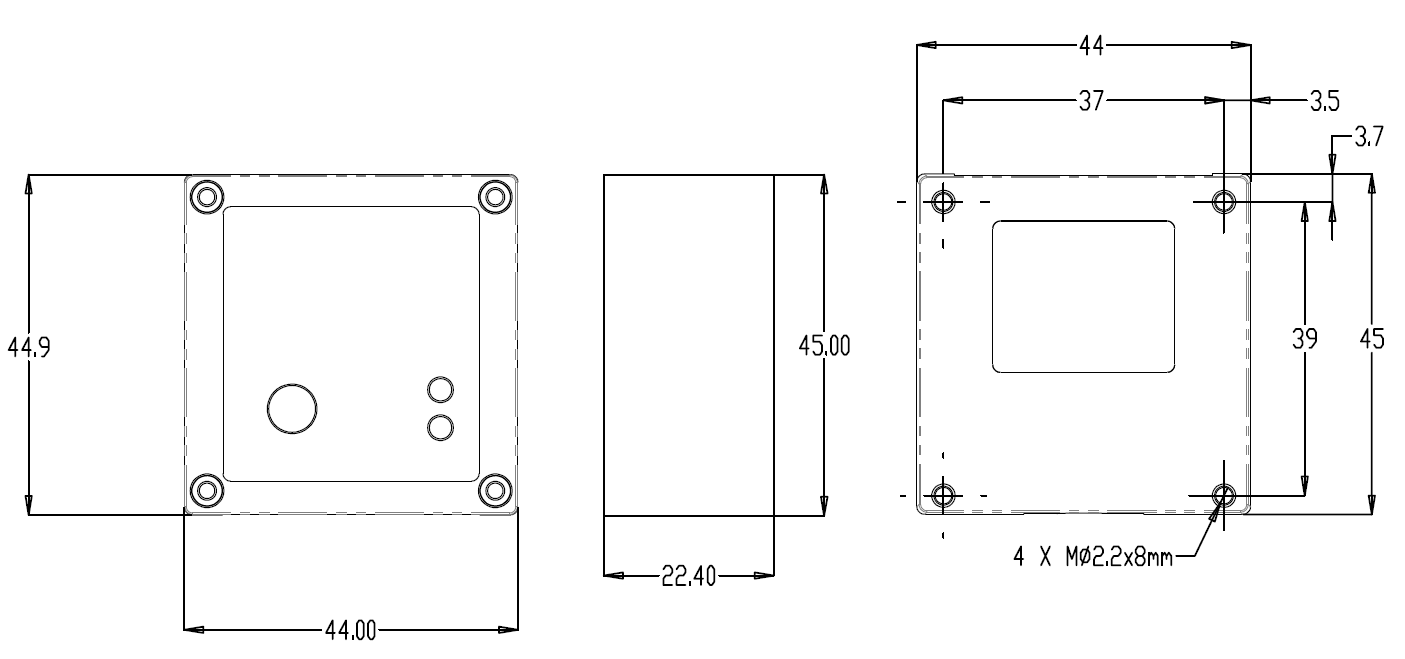

▶ Product Dimensional Drawing:
