▶ Performance parameters:
| model | ICW76ES-BS03R-W | |
| Size (mm) | 58 (width) X 85 (height) X 53 (depth) |
|
| weight | 350g | |
| voltage | 12-30VDC/-10%, 500m |
|
| power | Peak<9W, Average 5W |
|
| Frame rate | Global Shutter CMOS 60fps |
|
| pixel | 1920 * 1200 | |
| Print contrast |
At least 25% reflection difference |
|
| Interface support | RS232, RS485, TCP/IP, Modbus, Ethernet/I |
|
| External input | Two optoelectronic isolation inputs, capable of connecting to NPN, PNP, and relay inputs |
|
| External output | 3-way photoelectric isolation output |
|
| Focusing method | Mechanical transformation |
|
| Field of view |
282 * 176mm (228mm) |
|
| Supports one-dimensional Barcode 1-D |
Code 128, Code 93, Code 39, Matrix of 5, Interleaved 2 of 5, Codabar, MSI Plessey, GS 1 Data Bar, China Postal, UPC, EAN, etc |
|
| Supports 2D Barcode 1-D |
QR, DataMatrix, PDF417 Micro PDF417 Vericode, Maxicode, MicroQR, Aztec, Hanxin, etc |
|
| temperature range | Working temperature: 0 ° C to 50 ° C Storage temperature: -20 ° C to 70 ° C |
|
| humidity |
0% to 95% (non condensing) |
|
| Recognition accuracy | ≥ 2mi |
|
| Safety level |
Light safety: EN6247 1:2008 |
|
| EMC Electromagnetic Compatibility | EMC Electromagnetic compatibility: EN55032 |
|
| IP level |
IP54 | |
| ESD electrostatic prevention Protection level |
EN55024, contact discharge:/-8KV Air discharge:/-15KV |
|
| RF Immunity |
IEC61000-43, 10V/m |
|
| Artificial light immunity |
100000LUX |
|
| Seismic resistance |
Can withstand multiple impacts of falling from a height of 1.5 meters to the cement floor (Allowable deflection of 5 °) |
|
| authentication |
CE, FCC, RoHS |
|

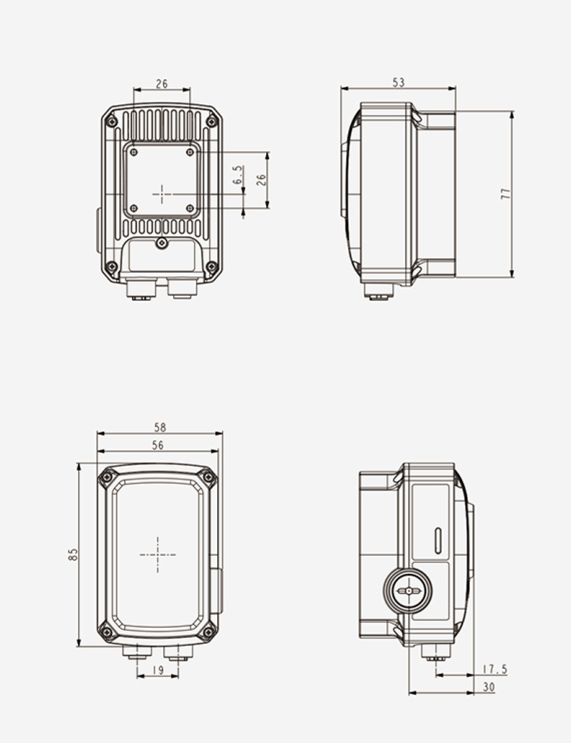

▶ Product Dimensional Drawing:
