ICW74V

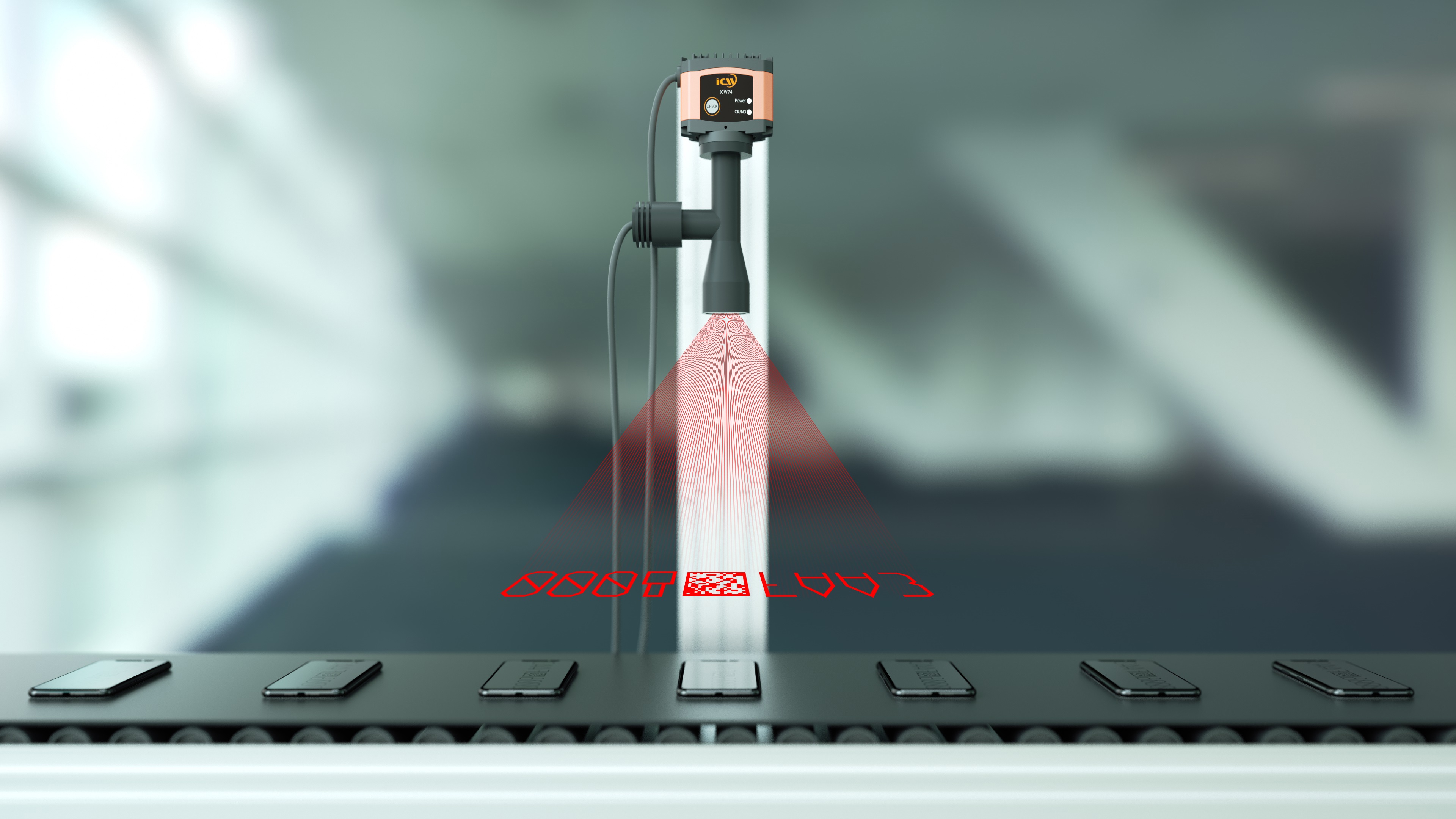

Equipped with a Vericode decoding license for the ICW74V series of code readers, the Vericode reader is tailored for the LCD panel industry.
Products&Services
Product details
▶ Product features:
1 million pixel image fixed code reader;
● LCD industry vericode;

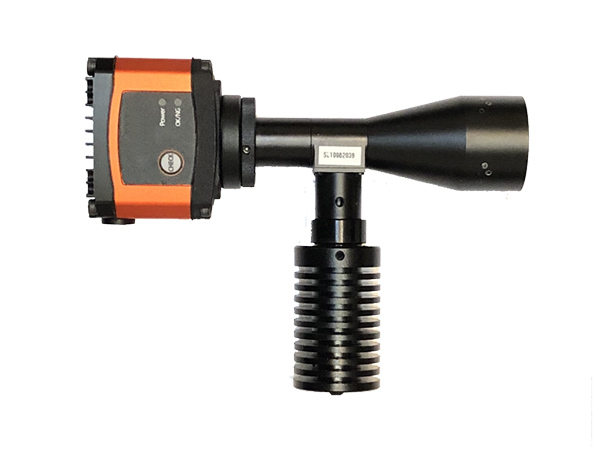

● Configure point or coaxial light sources for LCD code reading scenarios;
Small size, easy installation, and easy to use;
Equipped with OK/NG signal indicator light, it can provide intuitive feedback on whether the code reading is successful;
Support multiple communication protocols such as Ethernet, RS-232, USB-virtual COM, USB-HID, etc;
● Support FTP image transmission for easy traceability and analysis;
All metal casing, with a protection level of IP65.
▶ Performance parameters:
| parameter | ICW74V | |
| Size (mm) | fifty-two point five × one hundred and forty-three point seven five × 28.9 (Width × Height × Depth | |
| weight | 247g | |
| Power supply method | 5-30VDC ± 10%, 500mA | |
| system architecture | ARM926 | |
| Sensor type | Global Shutter CMOS | |
| Frame rate | 60FPS | |
| pixel | 1280 pixels (H) × 800 pixels (V) | |
| Image Color | Mono | |
| allocation | Read challenging one-dimensional/two-dimensional codes/DPM codes/Vericode codes | |
| Reading distance | 60mm | |
| power dissipation | Peak<2.5W, Average 2W | |
| Interface support | RS-232, USB virtual COM, USB keyboard, Ethernet | |
| External input | One photoelectric isolation input, capable of connecting to NPN, PNP, and relays | |
| External output | One photoelectric isolation output | |
| Supports one-dimensional barcode 1-D | Code 128, Code 39, Code 93, Code 11, Matrix 2 of 5, Interleaved 2 of 5, Codabar, MSI Plessey, GS1 DataBar, China Post, UPC, EAN, etc | |
| Supports 2D barcode 2D | VericodePDF 417, MicroPDF 417, DataMatrix, Maxicode, QR code, MicroQR, Aztec, Hanxin, etc | |
| working temperature | 0 ℃ to 50 ℃ | |
| Storage temperature | -40 ℃ to 70 ℃ | |
| humidity | 0% to 90% relative humidity (non condensing) | |
| Recognition accuracy | Min. 2mil | |
| Safety level | Light safety: EAN62471:2008 | |
| EMC electromagnetic interference | EMC Electromagnetic compatibility: EN55032 | |
| Protection level | IP65 | |
| ESD electrostatic protection level | EN55024, contact discharge: 8kV, coupling discharge: 20kV | |
| RF anti-interference | IEC61000-4-3, 10V/m | |
| Artificial light immunity | 100000LUX | |
| Seismic resistance | Capable of withstanding multiple impacts of falling from a height of 1.5 meters to the cement floor (allowable deviation of 5 °) | |
▶ Product Dimensional Drawing:
